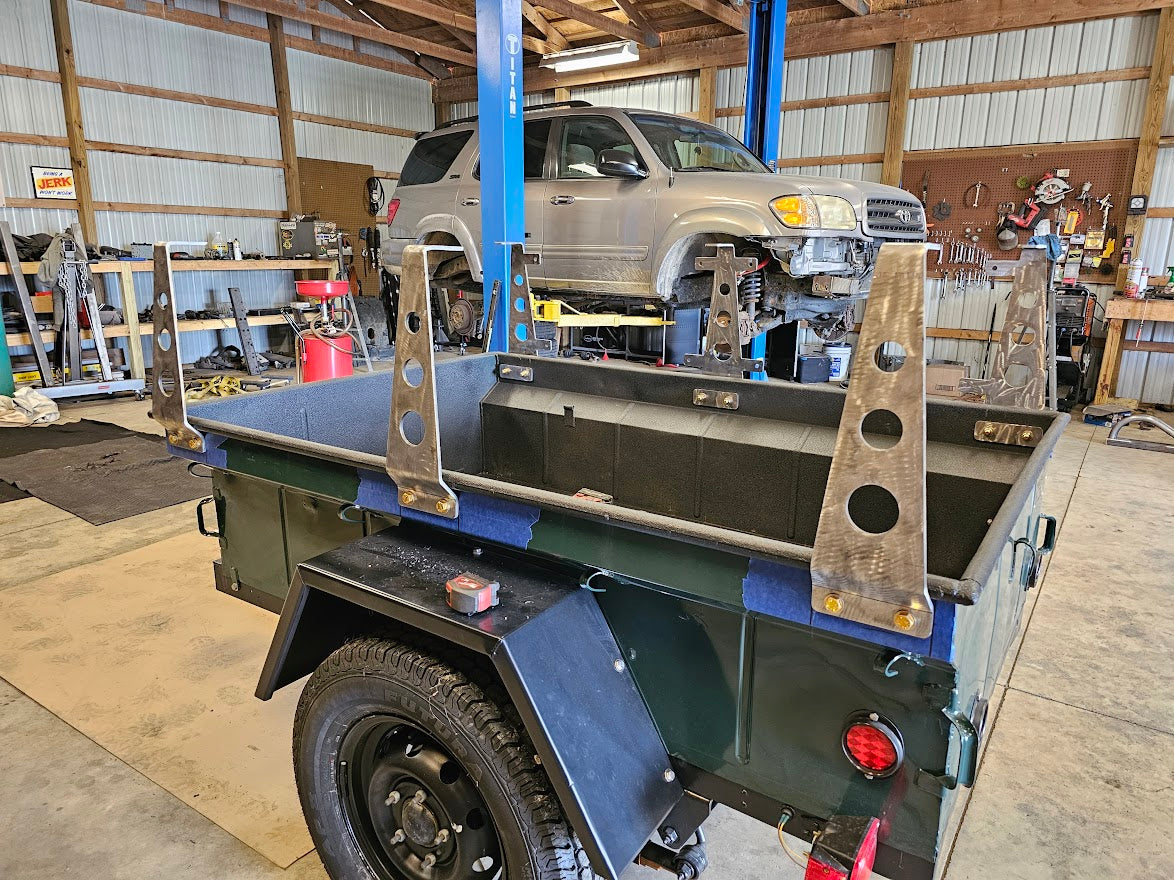

M416 bed rack 3 rails with 3/16" molle panels

This is our most popular rack system for the m416 military trailer with our custom molle panels. This will set you up for 3 rails across your trailer and 2 molle panels per side. These brackets give you 15-16" of clearance from brackets to bedside. Included are 3 uprights per side (6 total) and backing plates for each upright as well as 4 molle panels (2 per side). The uprights and backing plates are cnc cut from 1/4" plate and come bare steel. The molle panels are cnc cut from 3/16" steel. Additional parts you will need to complete your install are whatever size crossbars you want to use. There are two 1/2" holes in the top of the brackets. we usually use a 2x2 or 1x2 tube with a .120 wall thickness cut to whatever size you need for your application. you will also need two 1/2"x1.5" bolts and nuts per bracket to secure to the trailer and 4 3/8"x1" bolts and nuts for each molle panel.

1-2 week lead time

You are buying brackets, backing plates and molle panels only no other accessories or products shown in the pictures are included. They are for reference only.
